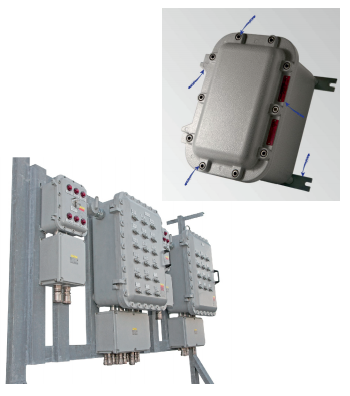

Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible dust is present Classification: Zone 1, 2, 21, 22. Material Of Construction: Body and lid in low copper content aluminium alloy. Stainless steel cover bolts. Internal/external earth screws. RAL 7035 epoxy coating. Galvanized steel mounting brackets. Silicon gasket Copper Free Aluminium Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust) Certification: ATEX CESI 00 ATEX 036U IEC Ex CES 14.0017U Standards: CENELEC EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE Application: Oil refinery, Petrochemical, On Shore & Offshore Plants

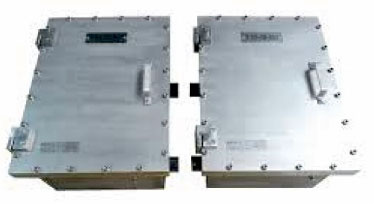

Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible gases or dust is present Classification: Zone 1, 2, 21, 22. Ambient temperature: -40DegC +55DegC (+40DegC) Material Of Construction: Stainless steel body and lid. Acid/hydrocarbon-resistant gasket. Stainless steel bolts and screws. Impact protection IK10 Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust) Certification: II 2GD Ex eb IIC T. Gb – Ex tb IIIC T. Db Ip66 Standards: Certification: CESI 03 ATEX 333 (ATEX) IEC Ex CES 13.0001 (IECEx) Application: Oil refinery, Petrochemical, On Shore & Offshore Plants

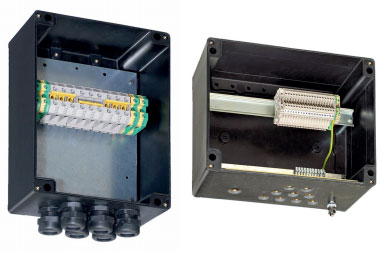

Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible gases or dust is present

Classification: Zone 1, 2, 21, 22.

Degree Of Protection: IP66

Material Of Construction: GRP (glass reinforced polyester resin) in RAL 9017 black coating (Ex e) or RAL 5015 blue coating (Ex i) UPON request. Stainless steel bolts and screws. Silicone gasket. Internal/external earth screws.

Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust)

Certification: ATEX CESI 00 ATEX 036U IEC Ex CES 14.0017U

Standards: CENELEC EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE

Application: Oil refinery, Petrochemical, On Shore & Offshore Plants
